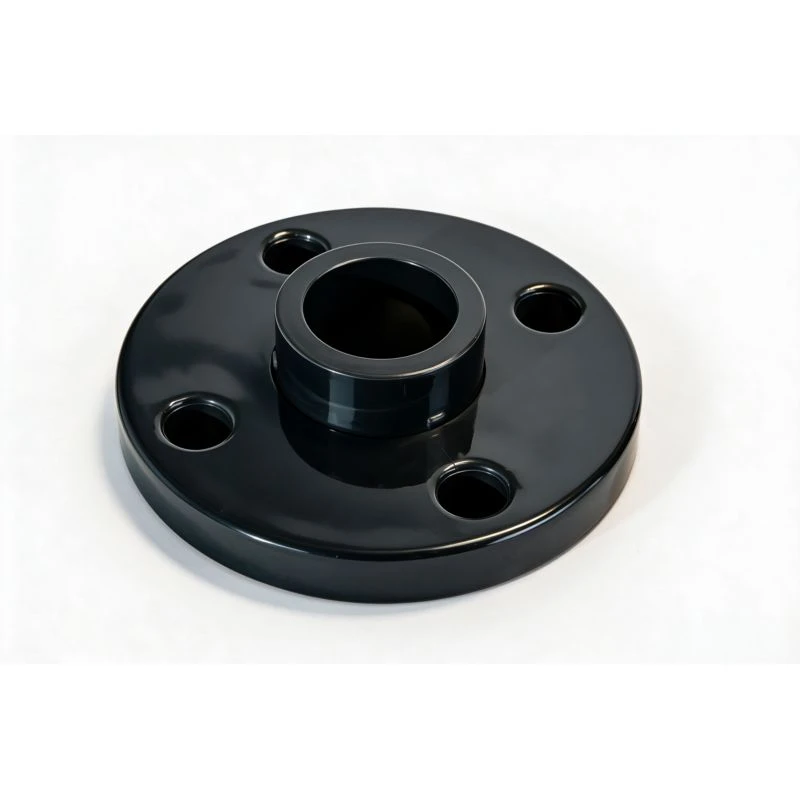

UPVC Flange
Detachable Connection for Equipment Access
This fitting provides detachable connections between pipes and equipment or valves. Flange connections allow easy installation, inspection, and replacement of piping. You do not need solvent cement for this connection. Bolts provide the sealing force. This makes maintenance much simpler. You can disconnect and reconnect without damaging the pipe ends. We offer both slip-on and threaded-neck types. Slip-on flanges work well for lower pressure systems. Threaded-neck flanges handle higher pressures. You will use these at chemical plant equipment interfaces, pump inlet and outlet connections, and filter connections. Any location needing frequent disassembly benefits from this fitting.
Industrial plastic pipe series products
CPVC Electricity
CPVC
PE
PPH
PVDF
UPVC
Our flanges use high-quality PVC material. The flange face is flat and smooth. Bolt hole positions are accurate. Our flanges work with Chinese, American, and Japanese standard metal backing rings. We hold ISO9001, ISO14001, and ISO45001 certifications. Products come with complete material certificates and test reports. We have built relationships with China Wuye Group and China Railway Construction Corporation. Our flanges have been verified in multiple industrial projects. Monthly capacity is 3,000 tons. We can handle large flange orders without delay.
Quality and After-Sales
We accept third-party inspections. We do 100% checks before packing. A 12-month warranty covers every piece. For non-human damage, we replace free of charge. We support EXW, FOB, and DDP trade terms. Export packaging uses wooden pallets for safety. Our team responds within 4 hours by phone. We arrive on site within 24 hours. Contact us at 400-881-6180.
One-stop Tube Factory in China
You can call us at 400-881-6180.
Our account manager is also available at 17315849196.
Flange Dimension Table
|
Size (DN) |
Inner Diameter D1 (mm) |
Flange OD D2 (mm) |
Flange OD D3 (mm) |
Bolt Holes |
Bolt Circle (mm) |
|
DN20 |
25.3 |
36.95 |
105 |
4-φ14 |
75 |
|
DN50 |
63.5 |
77.1 |
165 |
4-φ18 |
125 |
|
DN80 |
90.55 |
108.7 |
200 |
8-φ18 |
160 |
|
DN150 |
160.7 |
183.5 |
285 |
8-φ22 |
240 |
|
DN300 |
316.7 |
344.5 |
445 |
12-φ26 |
400 |
These dimensions follow standard flange specifications.
