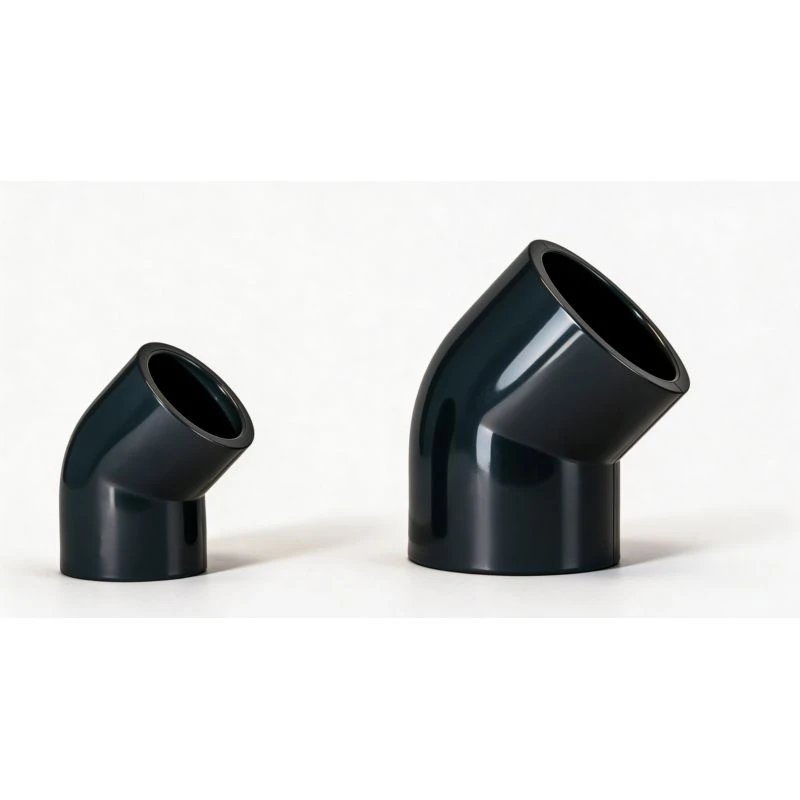

UPVC 45 Degree Elbow
Gentle Turn Fitting for Low Flow Resistance
This fitting changes pipe direction by 45 degrees. Compared to a 90-degree elbow, this product creates less flow resistance. It has less impact on media flow velocity. This makes it suitable for long-distance pipelines where pressure loss matters, pump discharge lines, and systems that need to reduce water hammer effects. The socket-type design makes installation easy. Solvent cement bonding creates a reliable seal. You can use it in industrial cooling water circulation, chemical material transport, water supply lines, and agricultural irrigation where gentle turns are needed.
Industrial plastic pipe series products
CPVC Electricity
CPVC
PE
PPH
PVDF
UPVC
We use advanced injection molding equipment and precision molds for this product. Our real-time monitoring system tracks temperature, pressure, and holding time during injection. This ensures dimensional accuracy and density consistency. We hold ISO9001 certification. Every stage from raw material incoming to finished product has standardized quality control procedures. Our products have been used in projects for China Construction Eighth Engineering Division. Installation feedback has been positive. We provide pre-sales selection advice and after-sales installation guidance.
Quality Assurance
A 12-month warranty covers every piece. For non-human damage, we replace free of charge. We accept third-party inspections. We support OEM and ODM services. We can customize molds based on your drawings. There is no minimum order quantity. Standard fittings ship in 3-5 working days. Our team responds within 4 hours by phone and arrives on site within 24 hours. Contact us at 400-881-6180.
One-stop Tube Factory in China
You can call us at 400-881-6180.
Our account manager is also available at 17315849196.
Dimensional Specifications
|
Size (DN) |
Socket OD D1 (mm) |
End OD D2 (mm) |
Socket Depth L1 (mm) |
Center Distance L2 (mm) |
|
DN25 |
32.35 |
40.94 |
22.5 |
65.5 |
|
DN50 |
63.5 |
76.0 |
38.0 |
116.16 |
|
DN80 |
90.55 |
105.15 |
51.5 |
166.39 |
|
DN125 |
140.6 |
161.4 |
76.0 |
248.87 |
|
DN200 |
226.2 |
253.8 |
118.5 |
389.7 |
Angle tolerance is controlled within ±1°. This ensures proper pipeline alignment.
