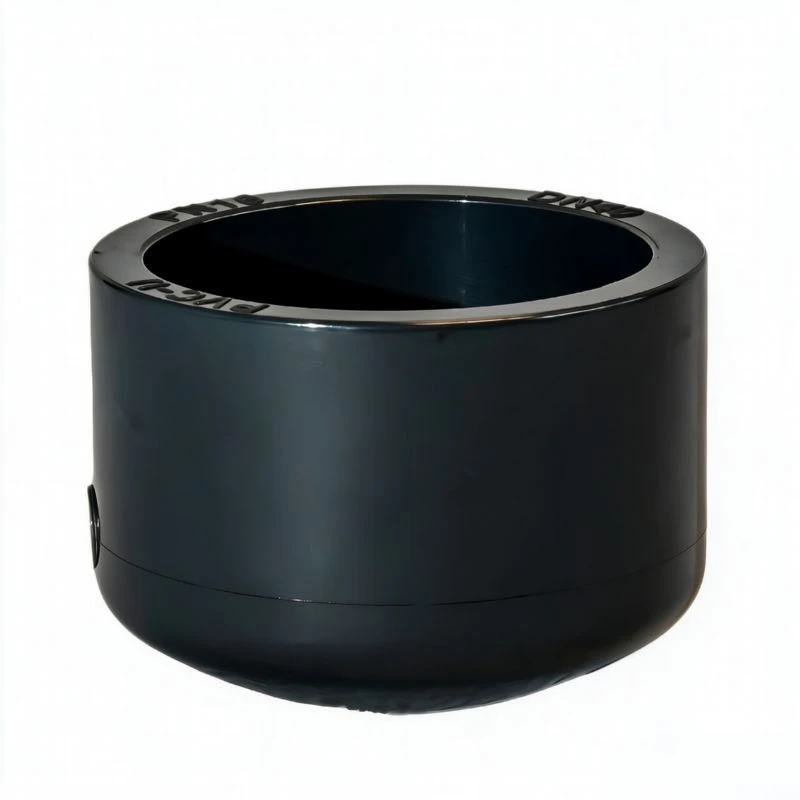

UPVC End Cap

UPVC End Cap

This fitting closes the end of a pipe. It is also called a UPVC plug or UPVC end cover. You install it at the end of a pipeline or at reserved connection points. It prevents media leakage and keeps foreign materials out of the pipe.
Send Inquiry
Description
Technical Parameters

UPVC Cap

End Closure Fitting for Pipe Terminations

This fitting closes the end of a pipe. It is also called a UPVC plug or UPVC end cover. You install it at the end of a pipeline or at reserved connection points. It prevents media leakage and keeps foreign materials out of the pipe. The socket-type design uses solvent cement bonding for a permanent seal. You will use it for end closures in piping systems. It also works for temporarily closing ports during pressure testing. And it serves as protection for reserved connections that are not yet in use. We manufacture all our caps on our own injection molding machines.

product-1200-900

Industrial plastic pipe series products



CPVC

CPVC Electricity

CPVC

CPVC

PE

PE

PPH

PPH

PVDF

PVDF

UPVC1

UPVC

Our molds are precise. Dimensions match our pipes accurately. Wall thickness is uniform. We hold ISO9001, ISO14001, and ISO45001 certifications. Anhui Province recognizes us as a High-Tech Enterprise. Our caps have been used in projects for China Nuclear Huatai Construction and China Construction Eighth Engineering Division. Each batch comes with a factory inspection report. We provide pre-sales technical support and after-sales installation guidance. Standard products ship in 3-5 working days. We can also make custom sizes on request.



Quality and Service

product-1200-900

We accept third-party inspections. We check every cap before packing. A 12-month warranty covers every piece. If goods are damaged due to packaging or quality issues, we replace them free. Our team responds within 4 hours by phone. We arrive on site within 24 hours. Contact us at 400-881-6180 or reach our account manager at 17315849196.

modular-1
One-stop  Tube Factory in China

You can call us at 400-881-6180.

Our account manager is also available at 17315849196.



Cap Dimension Table



Size (DN)

Socket OD D1 (mm)

End OD D2 (mm)

Socket Depth L1 (mm)

Total Height L2 (mm)

DN20

25.3

31.9

19.0

25.68

DN40

50.45

61.9

31.5

44.68

DN65

75.5

88.91

44.0

62.44

DN125

140.6

161.4

75.3

110.06

DN200

226.2

254.5

118.5

170.58

Each cap has accurate dimensions for proper fitting.
