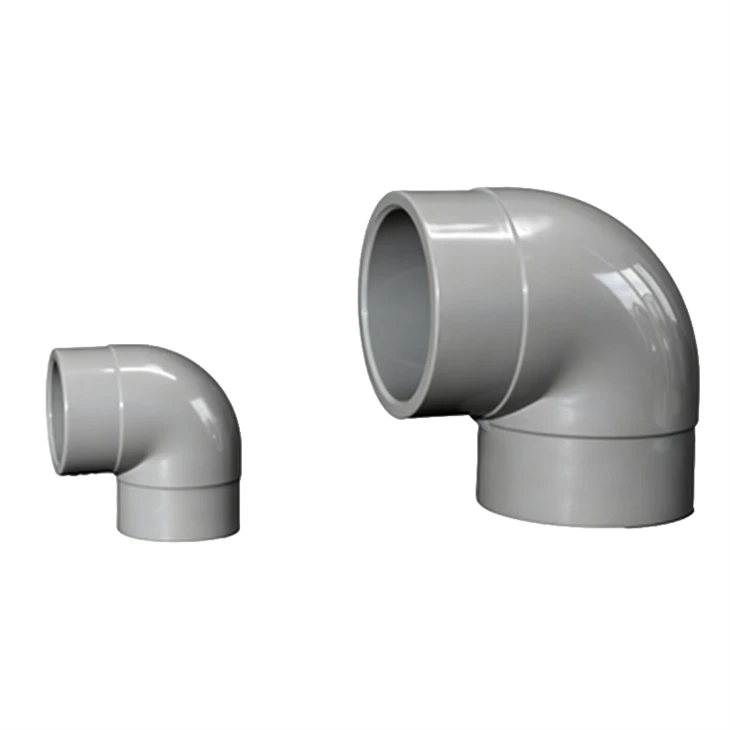

CPVC 90 Degree Elbow
Heat-Resistant Fitting for Hot Systems
This fitting changes pipe direction by 90 degrees in CPVC systems. It uses chlorinated polyvinyl chloride material. The fitting inherits CPVC's excellent heat resistance and chemical resistance. It runs continuously at 93°C. The socket-type design makes installation easy with solvent cement. The seal is reliable after bonding. You will use it in hot water pipelines, industrial high-temperature media transport lines, and chemical systems with hot corrosive media. Fire sprinkler systems with temperature requirements also need this fitting. We use imported CPVC material and specialized stabilizer systems for this product.
Industrial plastic pipe series products
CPVC Electricity
CPVC
PE
PPH
PVDF
UPVC
This ensures thermal stability and long service life. Our R&D team of 4 people continuously improves CPVC formulations and injection processes. We hold ISO9001 certification. Anhui Province recognizes us as a High-Tech Enterprise. Our products have been used in high-temperature chemical transport projects for China Electronics System Engineering No.2 and No.3 Construction. Each fitting is dimensionally checked and visually inspected before shipment. Standard products ship in 3-5 working days.
Quality and After-Sales
We support OEM and ODM services. We can manufacture based on your technical drawings. No minimum order quantity. We provide free samples. Custom sample development takes 45 days. A 12-month warranty covers every piece. Our team responds within 4 hours by phone. We arrive on site within 24 hours. Contact us at 400-881-6180.
One-stop Tube Factory in China
You can call us at 400-881-6180.
Our account manager is also available at 17315849196.
CPVC Elbow Specifications
|
Size (DN) |
End OD D0 (mm) |
Socket OD d1 (mm) |
Socket Depth T (mm) |
Center Distance L (mm) |
Pressure Rating |
|
DN20 |
31.8 |
25.3 |
18.7 |
32.7 |
S5(PN20) |
|
DN40 |
61.9 |
50.4 |
31.2 |
57.7 |
S5(PN20) |
|
DN65 |
91.0 |
75.4 |
43.7 |
82.5 |
S6.3(PN16) |
|
DN100 |
127.0 |
110.6 |
61.2 |
117.5 |
S6.3(PN16) |
|
DN150 |
184.6 |
160.8 |
86.2 |
168.5 |
S6.3(PN16) |
Choose the right pressure rating for your temperature and pressure conditions.
